OVERVIEW
Has your water provider requested you install a 100 litre passive grease trap that complies with BS EN 1825? Many food service establishments are now being advised to fit a BS EN 1825 compliant grease trap, meaning a minimum of 100ltr capacity is required. This GT100 meets this standard. Indeed, for all of your grease management requirements, Grease Trap Store can help!
Our passive under sink 100 litre grease trap can effectively collect fats, oils and grease (FOG’s) without the expense of a Grease Removal Unit.
Designed to be installed underneath a sink on the floor or a shelf, this 304 grade stainless steel grease trap measures 750mm long x 450mm front to back and just 325mm high.
Large enough to accommodate the flow rate of up to 3 sink bowls, or for food service establishments producing up to 200 meals per day, this is an excellent value option for those not wanting to spend thousands on a grease removal unit.
Designed for indoor use, it is ‘powered’ simply using the flow of water and strategically placed internal panels. This careful positioning channels water and allows the fats, oils and grease (FOG’s) to cool and separate. FOG is collected in the central chamber with the remaining safe ‘grey water’ continuing on through the outlet and in to your drains.
This product comes with a 5 year manufacturer defect warranty.
PRODUCTS DETAILS
Description
100 Litre Grease Trap
If your water provider has requested that you install a minimum 100 litre grease trap, this stainless steel unit is the ideal solution for achieving compliance while keeping your kitchen running smoothly. Many UK wastewater authorities require passive grease traps that meet BS EN 1825 standards, and this 100 litre model fully satisfies those requirements.
At The Grease Trap Store, we supply durable and cost-effective grease traps designed to deliver reliable fats, oils and grease (FOG) control without the high price associated with powered units. This model offers excellent value, efficient performance and straightforward maintenance—making it suitable for a wide range of commercial kitchens.
100 Litre Grease Trap Specification
- Fully compliant with BS EN 1825
- Manufactured from 304 catering-grade stainless steel
- Meets the minimum sizing requirement for a 100 litre grease trap
- 100 litre overall capacity
- Height to bottom of inlet: 250 mm
- Height to bottom of outlet: 210 mm
- Flow rate: 89 litres per minute
- 50 mm (2”) inlet/outlet connectors
- 26 kg grease holding capacity
- Suitable for up to three standard sink bowls
- Five-year manufacturer defect warranty
- Helps minimise drain cleaning and emergency call-outs
- Improves wastewater discharge quality
- Four stainless steel lid hinges for secure access
- Corrosion-resistant, long-lasting construction
- Compatible with standard 50 mm multi-fit connectors
- Model: GT100

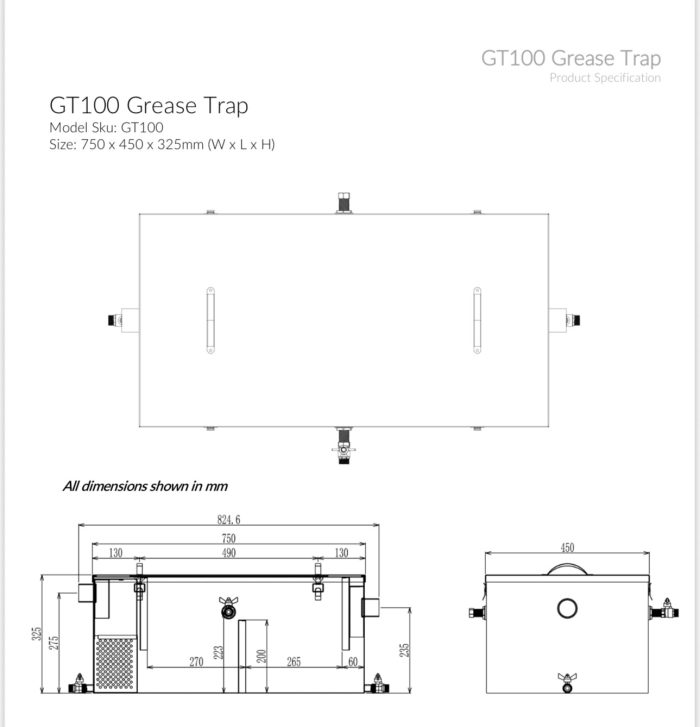

- Dimensions: 750 x 450 x 325 mm (w x l x h)
- Grease capacity: 26 kg
- Suitable for kitchens serving up to 200 meals per day
Why Choose a 100 Litre Grease Trap?
For commercial kitchens operating multiple sinks or appliances such as dishwashers, selecting the correct grease trap size is essential. Undersized units struggle to hold enough wastewater for proper FOG separation, resulting in slow drainage, backups and increased maintenance costs. This 100 litre grease trap is designed to cope with larger volumes of water, making it suitable for catering environments that require reliable performance every day.
Several major water companies—including Severn Trent Water and Thames Water—now recommend a minimum 100 litre passive trap to prevent overloading and to support effective FOG control. This model meets those expectations while offering the durability and efficiency needed in a commercial kitchen.
Reliable, Gravity-Fed FOG Separation
All of our passive grease traps operate using gravity alone. Wastewater flows through strategically placed internal baffles, slowing the water and allowing it to cool naturally. As it does, fats, oils and grease rise and remain inside the trap, while cleaner water exits through the outlet. With no power source or expensive filter replacements required, this system offers low running costs and flexible installation options.
Routine maintenance is simple. Checking and emptying the trap at regular intervals ensures optimal performance, and many businesses choose to partner with a local grease trap cleaning service. Whether cleaning yourself or using a contractor, always follow your local authority’s waste disposal guidelines.
100 Litre Stainless Steel Grease Trap
Designed and supported in the United Kingdom, this grease trap includes two end valves to allow quick draining during routine cleaning. Frequent quick-cleans prevent build-up and help maintain strong flow rates, ensuring your trap continues to operate efficiently.
This 100 litre grease trap complies with UK Building Regulations Part H (2.21) and is dispatched quickly through our trusted delivery partners. With its robust stainless steel construction and five-year warranty, it provides a dependable and cost-effective long-term solution for commercial kitchens.
